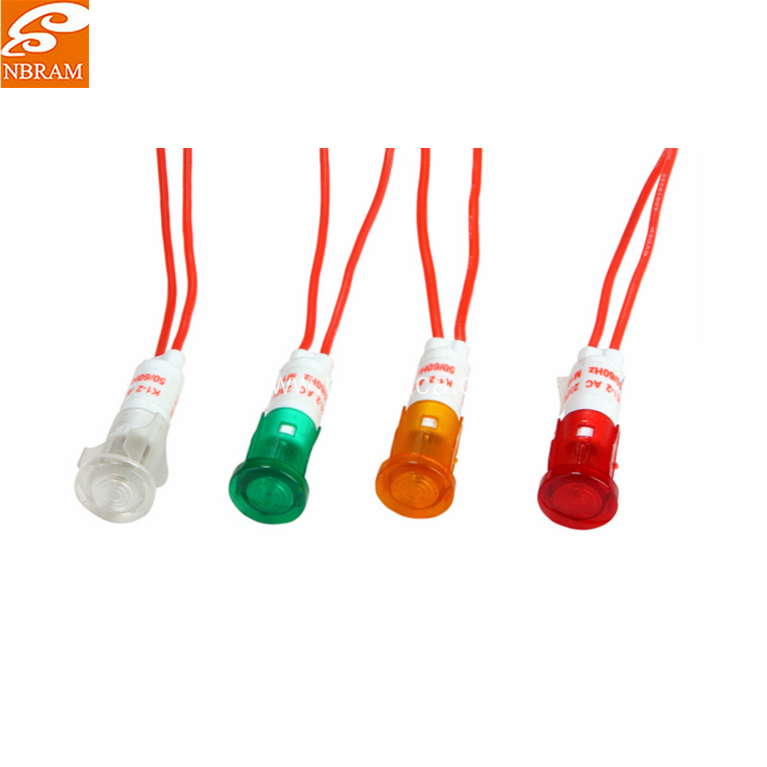

Neon Indicator Light K02 Signal Lamp

Main technical parameters

Environmental Temperature: -25+55;
Working under vibration frequency 2-80Hz,acceleration at 0.7g;
Relative Air Humidity: ≤98%;
Pollution rank is three grade and installation category is III;
Protection Degree: Head IP65(OEM could be IP67);
Voltage of working frequency: 2.5kV (AC valid value), 1min;
Leakage Index: CT1≥100;
Frequency: AC 50-60Hz.

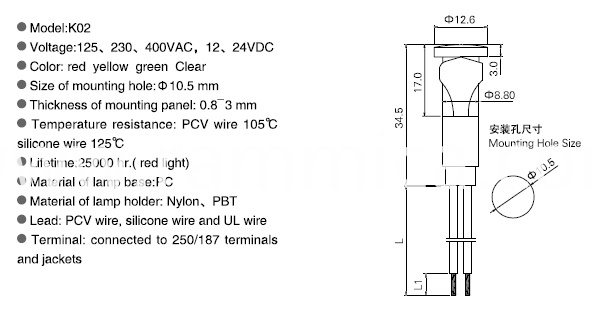

Model: K02

Voltage: 12/24VDC
Color: red,yellow,green,clear
Size of mounting hole:8mm
Thickness of mounting panel:0.8-3mm
Temperature resistance: 105 Celsius degree
Life time: 25000hrs(red light)
Material of lamp base:PC
Material of lamp holder: Nylon

Terminal: 250/187 terminals and jackets
