型号: Phlogopite Mica Sheet
品牌: NBRAM
包装: Box In strong cartons,on exporting pallet
生产力: 100000
源产地: 中国

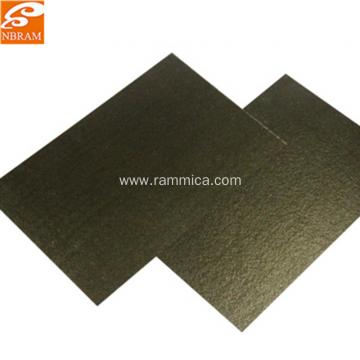

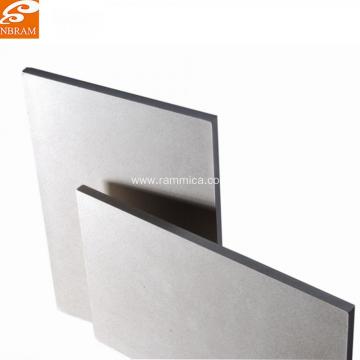

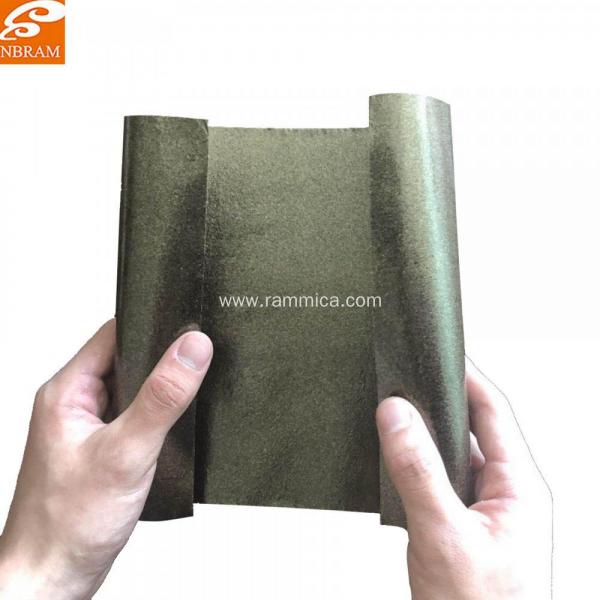

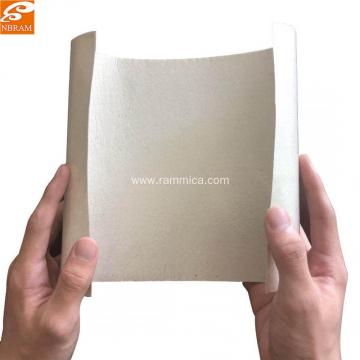

Different kind mica sheets depend on how are the mica sheets made.
The Mica sheets include Rigid mica sheet and Flexible mica sheet. They used a different kind of silicon resin and Heating-press technology.
And depending on the different kind mica raw material, we can produce different kind mica sheets: Muscovite mica sheet, Phlogopite mica sheet, Synthetic mica sheet, and Calcined mica sheet.
When using the stainless steel sheet as a separate material, instead of glass fiber cloth, we can make the glossy mica sheet.
There are also over-thick mica sheet, low smoke mica sheet, stainless steel mesh inset mica sheet
|
Type |
Phlogopite flexible mica sheet |
|
|
Mica paper |
Phlogopite |
|
|
Binder |
Silicon resin |
|
|
Mica content |
≥ 90% |
|
|
Binder content |
≤ 10% |
|
|
Thickness(mm) |
0.10 ~ 2.0 |
|
|
Thickness tolerance(mm) |
Average |
±0.02 - ±0.05 |
|
Individual |
±0.05 - ±0.08 |
|
|
Density(g/cm3) |
1.6-2.2 |
|
|
Heat loss at 500 °C % |
≤0.60 |
|
|
Flexural strength(kgf/mm2) |
≥16 |
|
|
Dielectric strength(KV/mm) |
>15 |
|
|
Insulation resistance(MΩ) |
100 - 600 |
|
|
Work temperature ( °C ) |
500°C |
|
|
Standard size(mm) |
1000 × 600 1000 × 1200 1000x2400 |
|
|
Standard reference |
GB5019 - 85, IEC371 |
|
Product Categories : Mica Products > Mica Tube
