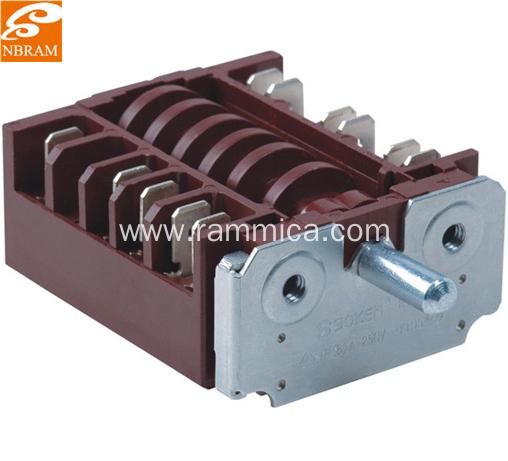

7 position oven rotary switch t150 RT345-1A brown

7 position oven rotary switch t150 RT345-1A(51.43/28) brown

Rotary switch for application in stoves and free standing kitchen, oven, wall mounted oven, pizza oven, grill machine, ventilation and for other related home appliances.

From 2 circuits up to 22.

Customization on size of axle, number of positions, type of terminal and attaching method to the appliance machine.

Option of attaching temperature thermostat and encoder por low voltage regulation.

Available also for professional catering equipment.

Worlwide homologations.

Price wise and 100% flexibility.

Specification

Material:PA

Color:black

Function:4,5,6,8,10 (as customer's requirement)

Working voltage:250V

Overload current:16A

Working temperature:≤125°C

Life:10000 times

Rotary angle:360

Usage:

The rotary switch is mainly used for the electric oven, electric oven, electric cooker and high-power

household appliances and mechanical equipment.By mechanical cam breaking mechanism, simple

structure, stable performance, safety, environmental protection, reliable, can rotate 360 degrees,

between the stall angle (90/50/30 is 2 to 11 gear function).
