型号: Muscovite
品牌: NBRAM
包装: Box In strong cartons,on exporting pallet
生产力: 100000
源产地: 中国

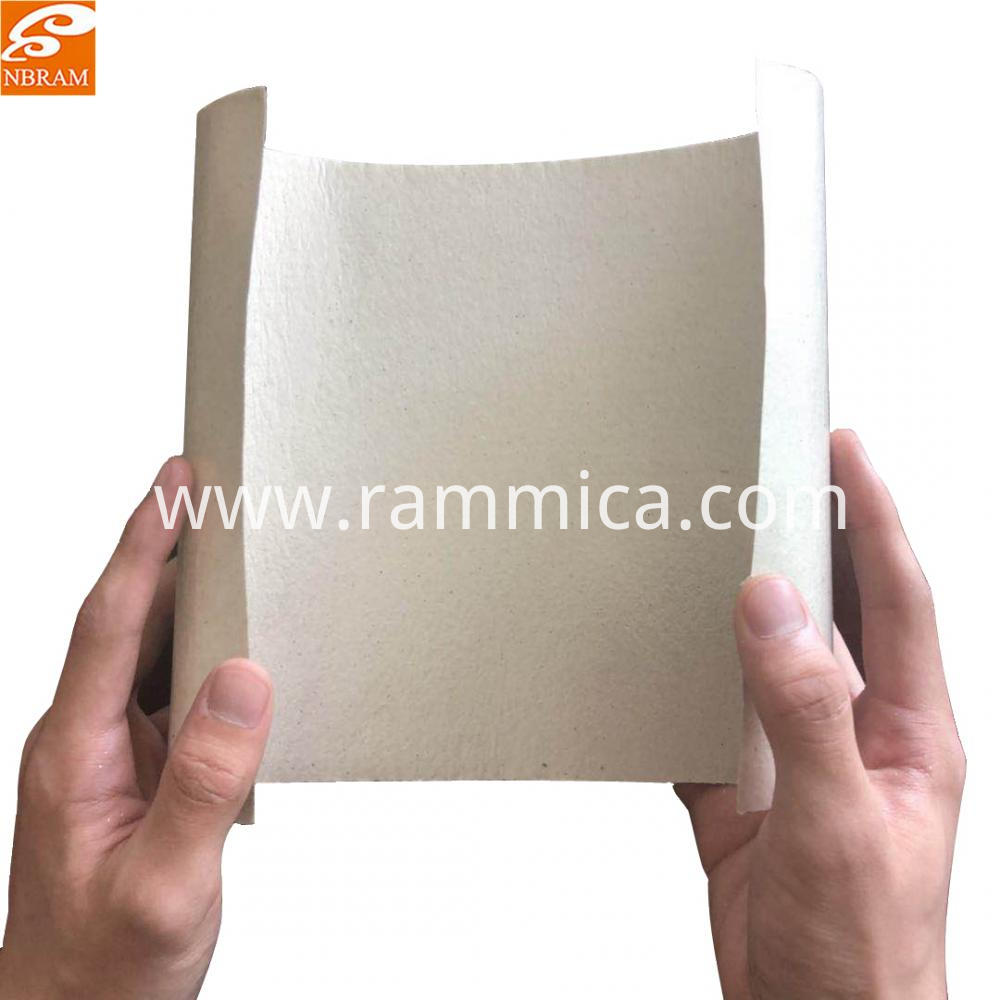

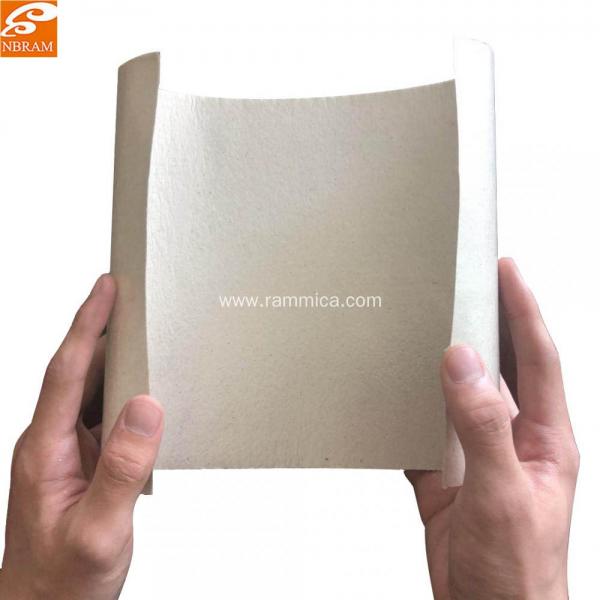

Muscovite flexible Mica Sheet has a good bending strength and hardness, toughness, soft mica sheet with softness and tensile properties, and all can be made into profiled
1,can be made into heater Around the heating wire
2,As a general plate, play the heat insulation effect
Mica sheet through the inspection qualified,produce less smoke and less odor when heated, even smokeless tasteless,with excellent environmental performance.Alkali and aci
|
Type |
Muscovite flexible mica sheet |
|
|
Mica paper |
Muscovite |
|
|
Binder |
Silicon resin |
|
|
Mica content |
≥ 90% |
|
|
Binder content |
≤ 10% |
|
|
Thickness(mm) |
0.10 ~ 2.0 |
|
|
Thickness tolerance(mm) |
Average |
±0.02 - ±0.05 |
|
Individual |
±0.05 - ±0.08 |
|
|
Density(g/cm3) |
1.6-2.2 |
|
|
Heat loss at 500 °C % |
≤0.60 |
|
|
Flexural strength(kgf/mm2) |
≥16 |
|
|
Dielectric strength(KV/mm) |
>15 |
|
|
Insulation resistance(MΩ) |
100 - 600 |
|
|
Work temperature ( °C ) |
500°C |
|
|
Standard size(mm) |
1000 × 600 1000 × 1200 1000x2400 |
|
|
Standard reference |
GB5019 - 85, IEC371 |
|
