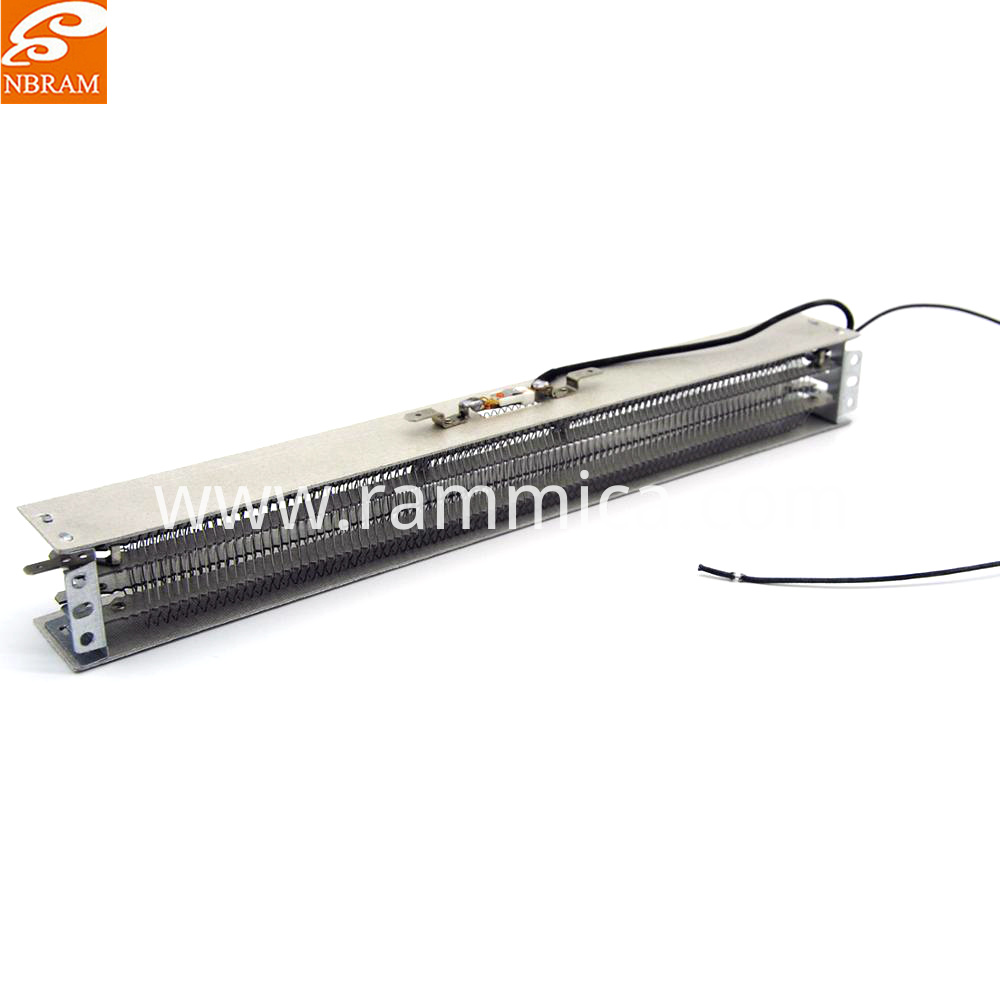

Wire Heating Element for Cross-Flow Fan

Application

l Hot runner systems : Heating of manifolds

l Packaging industry : Heating of cutting bars, hot stamps

l Laboratories : Heating of analytical equipment

l Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

l Telecommunications: Deicing, Enclosure Heater

l Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,

l Food Service: Steamers, Dish Washers,

l Industrial: Packaging Equipment, Hole Punches, Hot Stamp.

Home appliance heating elements.These type of heating elements are mainly used in home appliance.Such as rice cookers,electric kettles,coffee maker machines and so on......

Product feature

1,Can be factory formed to curves

2,Can be integrated with temperature sensors

3,Clamp directly to heat sink for exceptional heat transfer

4,Suitable for vacuum use after organic binder is burned off in initial power-up

Product specification

1,Broad temperature range of 260º to450°C provides faster processing and cycle times forproduction

2,Voltage : 5V-380V(AC)

3,Normal power rating :International standare

4,Voltage performance: Can resist AC 2000V/0.75 mAh/ 1 min impact without breakdown, no flashover in normal      state>100MΩ insulating performance

5,Usage life :>6000 hours

6,High watt density capability to 110 W/in² (17 W/cm²)
