250v 16A XZ307-509(F) 250v 16A

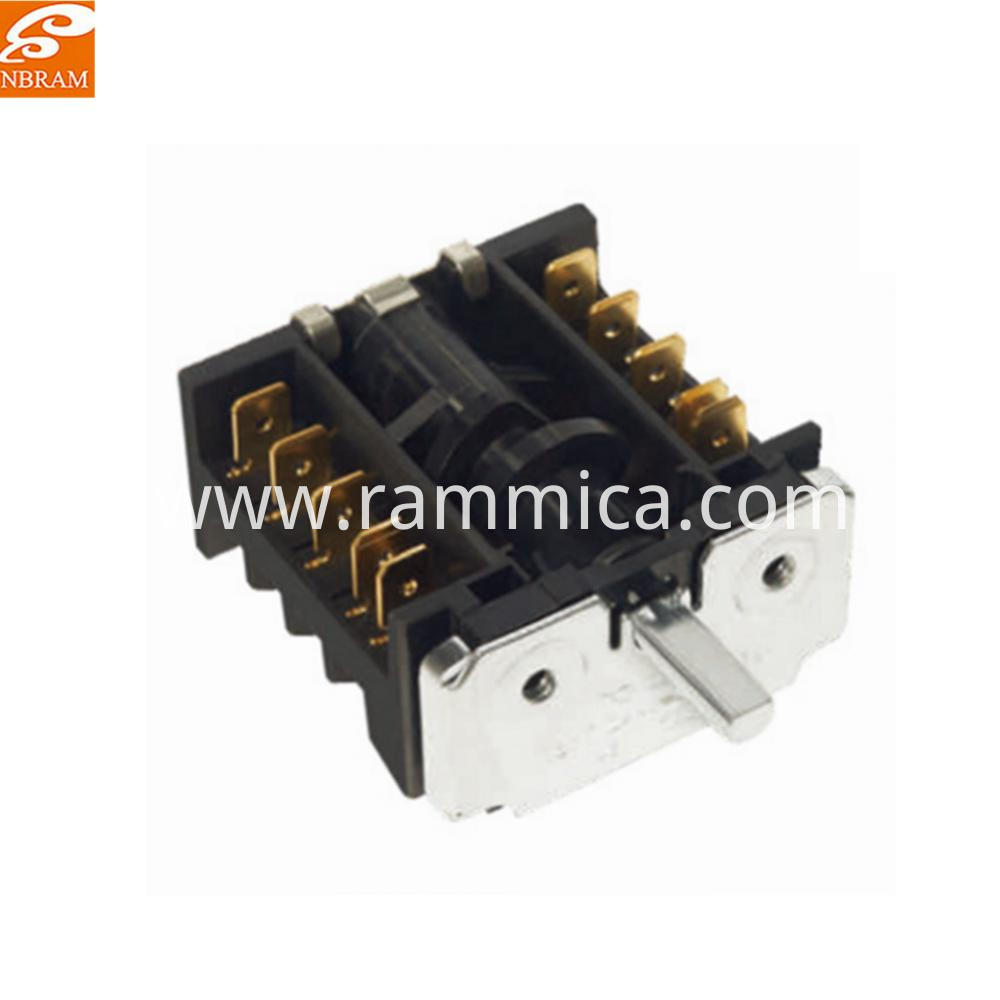

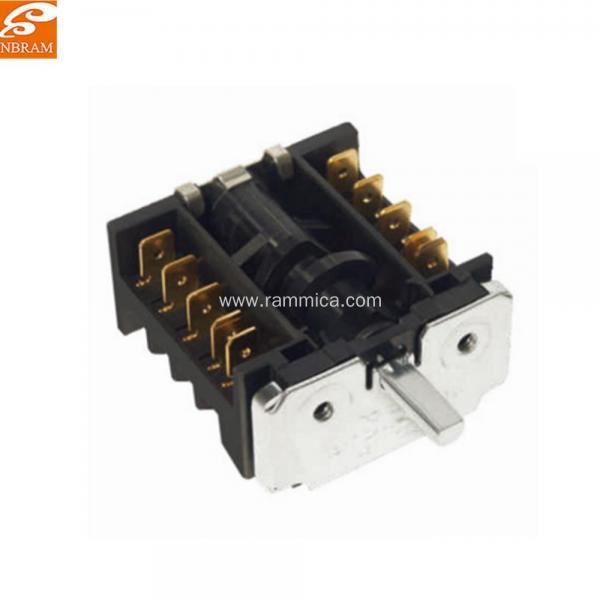

Rotary switch XZ307-509(F)

Technical Specification:

Feature:

1.Convenient button, import US Solutia PA66, plastic material, tiny volume, exquisite appearance, economical application, favorable price.
2.Plug in type terminal, large capacity and adapts to a variety of wiring requests.
3.Impact resistance, seismic resistance and corrosion resistance and the standard product with a fixed nut. Switch components are all screw type structure design, the point has self-cleaning function, the reliability is one hundred percent

Specification

Material:PA

Color:black

Function:4,5,6,8,10 (as customer's requirement)

Working voltage:250V

Overload current:16A

Working temperature:≤125°C

Life:10000 times

Rotary angle:360

Usage:

The rotary switch is mainly used for the electric oven, electric oven, electric cooker and high-power

household appliances and mechanical equipment.By mechanical cam breaking mechanism, simple

structure, stable performance, safety, environmental protection, reliable, can rotate 360 degrees,

between the stall angle (90/50/30 is 2 to 11 gear function).
