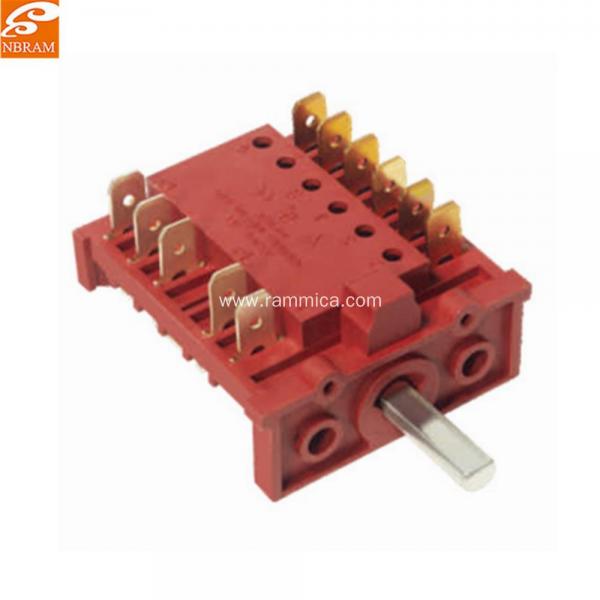

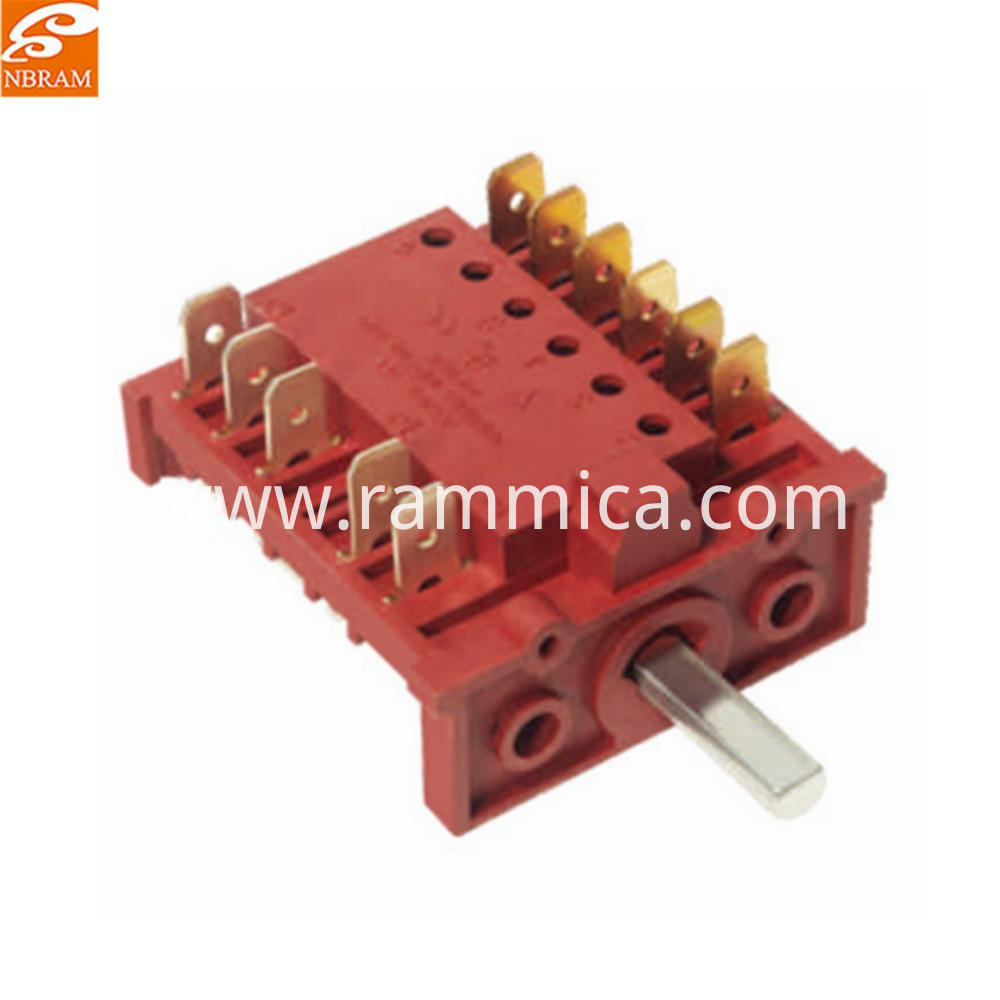

XZ307B-551F Rotary Switch 250V 16A

XZ307B-551F Rotary Switch 250V 16A

The number of poles per deck is the number of separate circuits that can be activated through a rotary switch per deck. The output connections are usually called ways instead of throws. The construction of the switch provides a total of 12 ways but there may be 1, 2, 3, or 4 poles. The rotating contact will channel the signal from the pole to the output terminals. The number of terminals required determines how many positions a switch will have.

Specification

Material:PA

Color:black

Function:4,5,6,8,10 (as customer's requirement)

Working voltage:250V

Overload current:16A

Working temperature:≤125°C

Life:10000 times

Rotary angle:360

Usage:

The rotary switch is mainly used for the electric oven, electric oven, electric cooker and high-power

household appliances and mechanical equipment.By mechanical cam breaking mechanism, simple

structure, stable performance, safety, environmental protection, reliable, can rotate 360 degrees,

between the stall angle (90/50/30 is 2 to 11 gear function).
