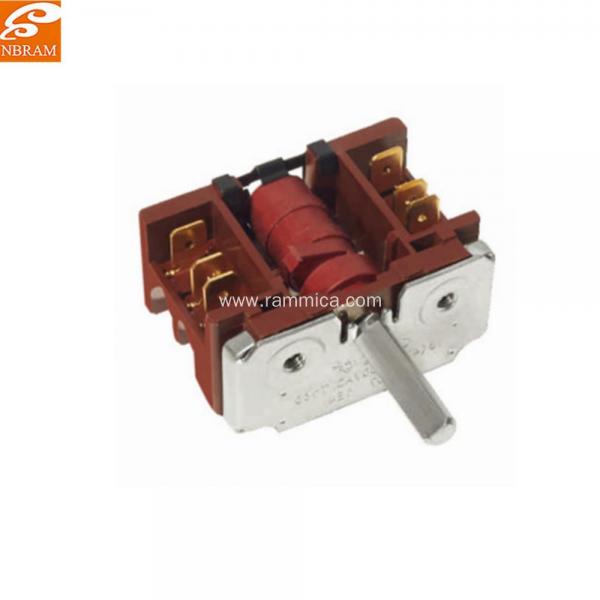

XZ307 Rotary Switch 250v 16A

Model No:
XZ307-122(F)
Brand:
NBRAM
Packaging:
Box In strong cartons,on exporting pallet
Productivity:
100000
Place of origin:
Zhejiang
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model NoXZ307-122(F)

BrandNBRAM

Supply Ability & Additional Informations

PackagingBox In strong cartons,on exporting pallet

Productivity100000

Place of originZhejiang

Rotary switch XZ307-122(F)

1.It is suggest to use more than 3% scaling powder of solder paste, avoid the soldering flux entering the switch so that the switch is invalid.
2.when designing the press handle, please refer to the drawing provided, do not press the switch directly with a sharp object, and the handle needs to be pressed vertically at the center of the switch, and press the handle to press the system at ±3°.
3.switch welding process, should pay special attention to the temperature and time control at 255±2℃,not more than 5 second. otherwise the temperature is too high,it will affect the switch life.
4.when welding, the switch should be kept OFF to avoid the switch from being damaged.

Specification

Material:PA

Color:black

Function:4,5,6,8,10 (as customer's requirement)

Working voltage:250V

Overload current:16A

Working temperature:≤125°C

Life:10000 times

Rotary angle:360

Usage:

The rotary switch is mainly used for the electric oven, electric oven, electric cooker and high-power



household appliances and mechanical equipment.By mechanical cam breaking mechanism, simple



structure, stable performance, safety, environmental protection, reliable, can rotate 360 degrees,



between the stall angle (90/50/30 is 2 to 11 gear function).


Xz307 122 F
